Wearable Activity 🔒

This template creates a wearable activity Interface for reviewing multi-channel time-series data (heart rate, HRV, acceleration, respiration, SpO2) from a wrist-worn or chest-worn device and labeling time spans as activities, sleep stages, or ECG rhythms.

Annotators see a 24-hour context strip with auto-detected segments, zoom into a focused window of the day, scrub through synchronized sensor channels, and apply a label from one of three groups — activity, sleep stage, or ECG rhythm — to a brushed selection or a default span around the playhead. Each label writes a region with start, end, duration, and the originating task group, producing the structured time-span output health-tech and longitudinal-monitoring teams need for activity recognition, sleep staging, and rhythm review.

The example Interface includes:

• 24-hour context strip with auto-detected sleep and activity segments, existing annotation markers, and a drag-to-zoom brush that updates the focused window.
• Synchronized channel stack rendering up to five signal traces — heart rate, HRV, accel magnitude, respiration, and SpO2 — sharing a single playhead and selection span.
• Span brushing in the channel stack to create a time selection that the label panel applies the next label to. With no active selection, labels are applied to a default ±30 min window around the playhead.
• Side rail showing the current sample’s value per channel plus min / max / mean stats for the focused window.
• GPS route preview below the channel stack that highlights the route segment matching the current selection.
• Judgment panel on the right with three stacked label groups — Activity, Sleep stage, and ECG rhythm — each label exposed as a hotkey button.
• Configurable label groups via activityLabels, sleepLabels, and rhythmLabels, plus a combined labels list for output validation.

Interface UI

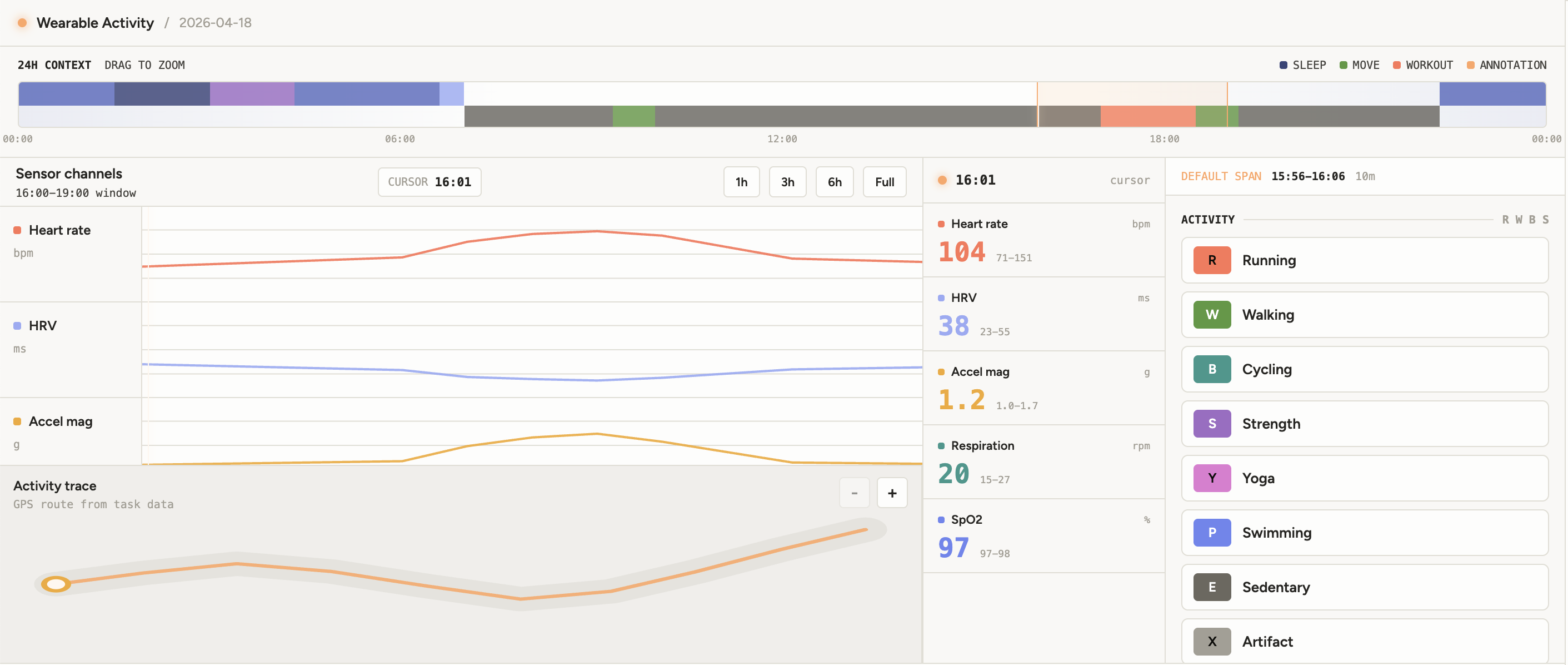

The Interface is divided into a top header, a 24-hour context strip, a channel stack with a route preview below it, a side rail of live sample stats, and a right-side judgment panel for applying labels.

Top bar

A thin header with the template name and task context.

• Wearable Activity title and the task’s date field (or "24h sensor review" when absent).
• Acts as a static label for the screen — no controls live here.

Context strip

A 24-hour overview bar above the channel stack.

• Auto-detected context segments from the segments task field are rendered as two stacked lanes — sleep stages on top, activities on the bottom — using each segment’s label color.
• Existing annotation markers appear as a third row so reviewers can see where they have already labeled.
• Drag anywhere on the strip to brush a new focused window — that span becomes the visible range in the channel stack. The current playhead position is rendered as a vertical guide.
• A small legend at the top right shows the color encoding for Sleep, Move, Workout, and Annotation swatches.

Channel stack

The main center panel — a stack of signal traces rendered for the focused window.

• Channels — Heart rate (bpm), HRV (ms), Accel mag (g), Respiration (rpm), and SpO2 (%). Each channel has its own y-axis range and color.
• Playhead is shared across all channels; clicking anywhere in the stack moves it.
• Brush horizontally to create a time selection. The selection persists across all channels and is what the judgment panel applies the next label to.
• The window range can be reset or rewindowed via the context strip above.

Side rail

A narrow right-side column showing live numbers for the playhead position.

• Current sample value per channel at the playhead.
• Window stats — min, max, and mean for each channel across the focused window.
• Refreshes continuously as you scrub the playhead or change the window.

Route preview

A GPS panel rendered below the channel stack.

• Renders the route task field as a projected polyline with the playhead marker on the matching point.
• When a selection is active, only the route portion inside the selected time span is highlighted.
• Useful for cross-checking workout segments — e.g., confirming a “Running” span matches the outdoor portion of the route.

Judgment panel

A 360-pixel right-side panel for applying labels to the current selection.

• A header strip shows the active span — either the brushed selection or the default ±30-minute window centered on the playhead — with its time range and duration.
• Three stacked label groups: Activity (hint R W B S), Sleep stage (A M L D), and ECG rhythm (S A V I).
• Each label is a button with a colored hotkey badge and the label name. Clicking it creates a region for the active span tagged with the matching task group (activity, sleep, or rhythm).
• Buttons are disabled in readOnly mode.

React code

The full Screen.jsx source is roughly 1,500 lines, so the snippets below highlight the parts you are most likely to customize:

• The params you wire to your task data and label groups,
• The default labels for each of the three groups,
• The channel definitions used by the stack and side rail,
• The result shape it writes back to Label Studio.

Interface params

Set or rename a param on the Interface config to point at different task fields or to replace any of the three label groups. The defaults mirror the example input below.

const paramsSchema = {
  type: "object",
  properties: {
    sensorField:    { type: "dataField", default: "sensor",   description: "Task data field containing wearable sensor samples" },
    segmentField:   { type: "dataField", default: "segments", description: "Task data field containing precomputed context segments" },
    routeField:     { type: "dataField", default: "route",    description: "Task data field containing GPS route points" },
    labels:         { type: "labels",    default: ALL_DEFAULT_LABELS,    description: "Allowed output labels for validation and auto-labeling" },
    activityLabels: { type: "labels",    default: DEFAULT_ACTIVITY_LABELS, description: "Activity labels shown in the activity tab" },
    sleepLabels:    { type: "labels",    default: DEFAULT_SLEEP_LABELS,    description: "Sleep stage labels shown in the sleep tab" },
    rhythmLabels:   { type: "labels",    default: DEFAULT_RHYTHM_LABELS,   description: "ECG rhythm labels shown in the rhythm tab" },
  },
};

Default labels

Each group has its own constant. Edit these in place to rename, recolor, or remap hotkeys — the name is what gets persisted in the output value.choices[0], color is shown on the hotkey badge and used to tint annotation markers, and hotkey is shown in the label button.

const DEFAULT_ACTIVITY_LABELS = [
  { name: "Running",   hotkey: "R", color: "#FF7557" },
  { name: "Walking",   hotkey: "W", color: "#57983C" },
  { name: "Cycling",   hotkey: "B", color: "#34988D" },
  { name: "Strength",  hotkey: "S", color: "#9F6CC6" },
  { name: "Yoga",      hotkey: "Y", color: "#E37BD3" },
  { name: "Swimming",  hotkey: "P", color: "#6D87F1" },
  { name: "Sedentary", hotkey: "E", color: "#6B6860" },
  { name: "Artifact",  hotkey: "X", color: "#A49F95" },
];

const DEFAULT_SLEEP_LABELS = [
  { name: "Awake",          hotkey: "A", color: "#99ABF5" },
  { name: "REM",            hotkey: "M", color: "#9F6CC6" },
  { name: "Light Sleep",    hotkey: "L", color: "#576CC1" },
  { name: "Deep Sleep",     hotkey: "D", color: "#37447A" },
  { name: "Sleep Artifact", hotkey: "X", color: "#6B6860" },
];

const DEFAULT_RHYTHM_LABELS = [
  { name: "Sinus Rhythm",    hotkey: "S", color: "#34988D" },
  { name: "AFib",            hotkey: "A", color: "#FF7557" },
  { name: "PVC",             hotkey: "V", color: "#E69559" },
  { name: "Inconclusive",    hotkey: "I", color: "#6B6860" },
  { name: "Motion Artifact", hotkey: "M", color: "#45433E" },
];

Channels

CHANNELS drives both the central signal stack and the side-rail readings. Each entry’s read function extracts the value from a single sample, range sets the y-axis bounds, and color tints the trace.

const CHANNELS = [
  { key: "hr",    label: "Heart rate",  unit: "bpm", color: "#FF7557", range: [45, 175], read: (sample) => sample.hr },
  { key: "hrv",   label: "HRV",         unit: "ms",  color: "#99ABF5", range: [15, 120], read: (sample) => sample.hrv },
  { key: "accel", label: "Accel mag",   unit: "g",   color: "#F4AA2A", range: [0.75, 2.2], read: (sample) => sample.accel },
  { key: "resp",  label: "Respiration", unit: "rpm", color: "#34988D", range: [8, 30],   read: (sample) => sample.resp },
  { key: "spo2",  label: "SpO2",        unit: "%",   color: "#6D87F1", range: [88, 100], read: (sample) => sample.spo2 },
];

To add a new channel (for example, skin temperature or stress score), append an entry with a unique key, a range for the y-axis, and a read function that pulls the value out of a sample.

Result shape

getResults emits one Label Studio result per labeled span. Every result uses from_name: "activity", type: "choices", and writes the selected time range, duration, and the originating label-group (task) into value.

function getResults(regions) {
  // Emits one result per labeled span with from_name: "activity", type: "choices".
  // to_name: sensorField (defaults to "sensor")
  // value: {
  //   choices: [label],            // e.g. ["Running"], ["Deep Sleep"], ["AFib"]
  //   start, end, duration,        // seconds since the start of the day
  //   task,                        // "activity" | "sleep" | "rhythm"
  //   note?                        // optional reviewer note
  // }
}

Example input

The Interface expects a task data object with a sensor array of timestamped samples, an optional segments array of precomputed context spans (which power the 24-hour context strip), and an optional route array of GPS points.

{
  "data": {
    "device": "Garmin Forerunner 965",
    "date": "2026-04-18",
    "timezone": "America/Los_Angeles",
    "workout": "Golden Gate Park tempo run",
    "sensor": [
      { "timestamp": 0,     "hr": 57,  "hrv": 84, "x": 0.01, "y": 0.02, "z": 0.98, "resp": 12.4, "spo2": 97.1 },
      { "timestamp": 5400,  "hr": 52,  "hrv": 96, "x": 0.01, "y": 0.03, "z": 0.99, "resp": 11.7, "spo2": 96.8 },
      { "timestamp": 25200, "hr": 66,  "hrv": 59, "x": 0.04, "y": 0.08, "z": 1.01, "resp": 14.9, "spo2": 97.6 },
      { "timestamp": 61200, "hr": 104, "hrv": 38, "x": 0.24, "y": 0.31, "z": 1.09, "resp": 20.1, "spo2": 97.3 },
      { "timestamp": 63000, "hr": 146, "hrv": 25, "x": 0.63, "y": 0.78, "z": 1.29, "resp": 25.8, "spo2": 96.8 },
      { "timestamp": 64800, "hr": 143, "hrv": 27, "x": 0.58, "y": 0.72, "z": 1.24, "resp": 25.1, "spo2": 96.9 },
      { "timestamp": 85800, "hr": 61,  "hrv": 70, "x": 0.02, "y": 0.03, "z": 0.99, "resp": 13.0, "spo2": 97.2 }
      // ... typically one sample every few minutes across the 24-hour window
    ],
    "segments": [
      { "start": 0,     "end": 5400,  "label": "Light Sleep", "kind": "sleep" },
      { "start": 5400,  "end": 10800, "label": "Deep Sleep",  "kind": "sleep" },
      { "start": 10800, "end": 15600, "label": "REM",         "kind": "sleep" },
      { "start": 25200, "end": 33600, "label": "Sedentary",   "kind": "activity" },
      { "start": 61200, "end": 66600, "label": "Running",     "kind": "activity" },
      { "start": 80400, "end": 86400, "label": "Light Sleep", "kind": "sleep" }
    ],
    "route": [
      { "timestamp": 61200, "lat": 37.76951, "lon": -122.48684 },
      { "timestamp": 62400, "lat": 37.77046, "lon": -122.48222 },
      { "timestamp": 63600, "lat": 37.76942, "lon": -122.47734 },
      { "timestamp": 64800, "lat": 37.76918, "lon": -122.47265 },
      { "timestamp": 66000, "lat": 37.77112, "lon": -122.46830 },
      { "timestamp": 66600, "lat": 37.77204, "lon": -122.46615 }
    ]
  }
}

Each sensor sample carries a timestamp in seconds (from the start of the day), a heart-rate / HRV / respiration / SpO2 reading, and a 3-axis accelerometer triplet (x, y, z) that the Interface combines into the Accel mag channel. segments and route are both optional — the screen renders blank lanes or hides the GPS panel when they’re absent.

Example output

The saved annotation contains one result per labeled span. The example below shows three regions — a Deep Sleep stage at the start of the day, a Running workout during the tempo run, and a Sinus Rhythm rhythm review on the same workout window.

{
  "result": [
    {
      "id": "wearable-sleep-deep-sleep-5400-10800",
      "from_name": "activity",
      "to_name": "sensor",
      "type": "choices",
      "value": {
        "choices": ["Deep Sleep"],
        "start": 5400,
        "end": 10800,
        "duration": 5400,
        "task": "sleep"
      },
      "origin": "manual"
    },
    {
      "id": "wearable-activity-running-61200-66600",
      "from_name": "activity",
      "to_name": "sensor",
      "type": "choices",
      "value": {
        "choices": ["Running"],
        "start": 61200,
        "end": 66600,
        "duration": 5400,
        "task": "activity",
        "note": "Tempo segment confirmed against GPS route."
      },
      "origin": "manual"
    },
    {
      "id": "wearable-rhythm-sinus-rhythm-61200-66600",
      "from_name": "activity",
      "to_name": "sensor",
      "type": "choices",
      "value": {
        "choices": ["Sinus Rhythm"],
        "start": 61200,
        "end": 66600,
        "duration": 5400,
        "task": "rhythm"
      },
      "origin": "manual"
    }
  ]
}
